Example: Compressor Efficiency Map

This walkthrough demonstrates fitting a 2D compressor efficiency map using the class-based EBF API. The full script is at examples/comp_map_ebf.py.

The Problem

A compressor map relates operating conditions — corrected mass flow and total pressure ratio — to compressor efficiency. We have scattered test data and want to produce a smooth efficiency surface for use in cycle simulations.

The Data

data/GenericMap.xlsx holds 56 operating points on a single sheet named data, with one column per variable:

Column Meaning Units Role
mdot Corrected mass flow kg/s input 1
PR Total-to-total pressure ratio — input 2
eta Total-to-total efficiency — output
import numpy as np
import ebf
import pandas as pd
from pathlib import Path

data_path = Path("data/GenericMap.xlsx")
df = pd.read_excel(data_path, sheet_name="data")

mdot = df['mdot'].values     # corrected mass flow  (input 1)
PR = df['PR'].values         # pressure ratio       (input 2)
eta = df['eta'].values       # efficiency           (output)

X = np.column_stack([mdot, PR])

The input array X has shape (n_points, 2) and the output eta has shape (n_points,).

Creating and Training the Model

model = ebf.EBF(
    n_nodes=9,               # number of interpolation nodes
    basis='multiquadric',    # basis function — see ebf.BASIS_FUNCTIONS for all options
    eps=1e-8,                # numerical stability offset
)

model.fit(
    X, eta,                  # inputs and output
    steps=80000,             # optimizer iterations
    lr=0.01,                 # initial learning rate (Adam with exponential decay)
    var_weight=0.01,         # node spread regularization strength
    ellipsoid_weight=0.001,  # ellipsoid shape penalty — explicit smoothness knob (ADR-011)
    loss_type='huber',       # 'rmse' (default), 'huber', or 'tukey'
    huber_delta='auto',      # 'auto' (default) tracks the residual noise floor
    tukey_c='auto',          # Tukey rejection point — 'auto' (default) recommended
    val_fraction=0.0,        # held-out fraction for early stopping (0 = off)
    patience=10,             # val evaluations without improvement before stopping
    verbose=True,            # print training progress every 100 steps
    loss_threshold=0.05,     # early stopping when training loss <= this value
    seed=42,                 # reproducible weight initialization
)

Parameter guidance:

  • n_nodes — Start with roughly 1/3 to 1/2 the number of data points. More nodes give more flexibility but take longer to train.
  • basis — 'multiquadric' is a good default. Try 'gaussian' or 'matern52' if you want localized node influence. See the Basis Functions page.
  • var_weight — Controls how strongly nodes are prevented from collapsing together, and is also the primary smoothing knob. Forcing nodes apart causes the optimizer to broaden each node's ellipsoidal influence zone (lower effective r values), producing a smoother surface. Increase var_weight to smooth the fit; decrease it if the fit is too flat or misses sharp features. If nodes visibly cluster together, var_weight is too low.
  • ellipsoid_weight — The explicit smoothness knob (ADR-011). It penalizes the mean squared Frobenius norm of each node's ellipsoid factor L, which bounds how sharp a node's influence zone can get. Unlike var_weight it acts on the sharpness mechanism directly rather than through node spacing, so reach for it first when a fit is too wiggly. 0.0 (default) disables it; small values like 0.001 are usually enough.
  • loss_type — 'rmse' (default) gives standard least-squares fitting. Use 'huber' for noisy data with outliers (outliers get reduced, linear weight), or 'tukey' when some points are outright erroneous — residuals beyond the Tukey rejection point exert zero pull and are effectively discarded.
  • huber_delta — Controls the threshold where Huber loss switches from quadratic to linear. The default 'auto' recalibrates it every 100 steps from the current residual spread, so roughly the largest ~18% of residuals get linear (outlier-resistant) treatment as the fit tightens. Pass a float (in scaled data space) to fix the threshold; lower values make the model more aggressive at ignoring outliers.
  • tukey_c — The Tukey biweight rejection point (only used with loss_type='tukey'). Keep the default 'auto': it tracks the residual noise floor at 4.685·σ and anneals from an effectively quadratic start, which protects against rejecting good data early in training.
  • steps — More steps gives the optimizer more time to converge. Watch the loss printout — if it's still decreasing at the end, increase steps.
  • loss_threshold — Stops training early once the training loss is low enough. Set to None to always run the full number of steps.
  • val_fraction — Holds out a fraction of the points (e.g. 0.15) and stops training when the held-out loss stops improving for patience evaluations, then restores the best weights. This is the most reliable way to avoid fitting measurement noise, and it replaces guessing steps — but it needs roughly 50+ data points to give a stable signal. 0.0 (default) disables it.

Prediction and Inspection

Out = model.predict(X)        # predictions at training points
Nodes = model.get_nodes()     # node positions in original space
print("Node positions:\n", Nodes)

# Per-step training history, stored by fit() — columns are (step, loss)
print(f"Trained for {len(model.history_)} steps, "
      f"final loss {model.history_[-1, 1]:.4f}")

predict() accepts any (n_points, 2) array — it doesn't have to be the training data. get_nodes() returns node positions in the original (unscaled) coordinate space.

Saving and Loading

ckpt_path = model.save("checkpoints", filename='compressor-map')
print("Saved to:", ckpt_path)

loaded_model = ebf.EBF.load(ckpt_path)
Out_loaded = loaded_model.predict(X)

The checkpoint includes all model weights, the basis function configuration, and the Scale/Offset values needed to convert between scaled and unscaled space.

Evaluation and Plotting

The example uses the built-in visualization utilities to generate three plots with a single function call each:

# Convergence plot — training loss curve with the early-stopping target
ebf.convergence_plot(model, loss_threshold=0.05)

# Correlation plot — data vs prediction with R²
ebf.correlation_plot(eta, Out)

# Contour plot — filled contour of the fitted surface
ebf.contour_plot_2d(
    model, X, eta,
    xlabel='Corrected Mass Flow, mdot',
    ylabel='Pressure Ratio, PR',
    zlabel='Efficiency, eta',
    show_data=True,
    show_nodes=True,
)

The contour plot automatically masks predictions outside the convex hull of the training data so the plot doesn't show misleading extrapolation.

A well-fitted model should achieve R² > 0.99 on this dataset.

The Summary Figure

summary_plot_3d() composes all of the above into one figure — the fitted surface alongside the three diagnostics:

ebf.summary_plot_3d(
    model, X, eta,
    xlabel='Corrected Mass Flow, mdot',
    ylabel='Pressure Ratio, PR',
    zlabel='Efficiency, eta',
    loss_threshold=0.05,
    show_nodes=True,
    error_color=True,        # the default — shade points by |error|
)

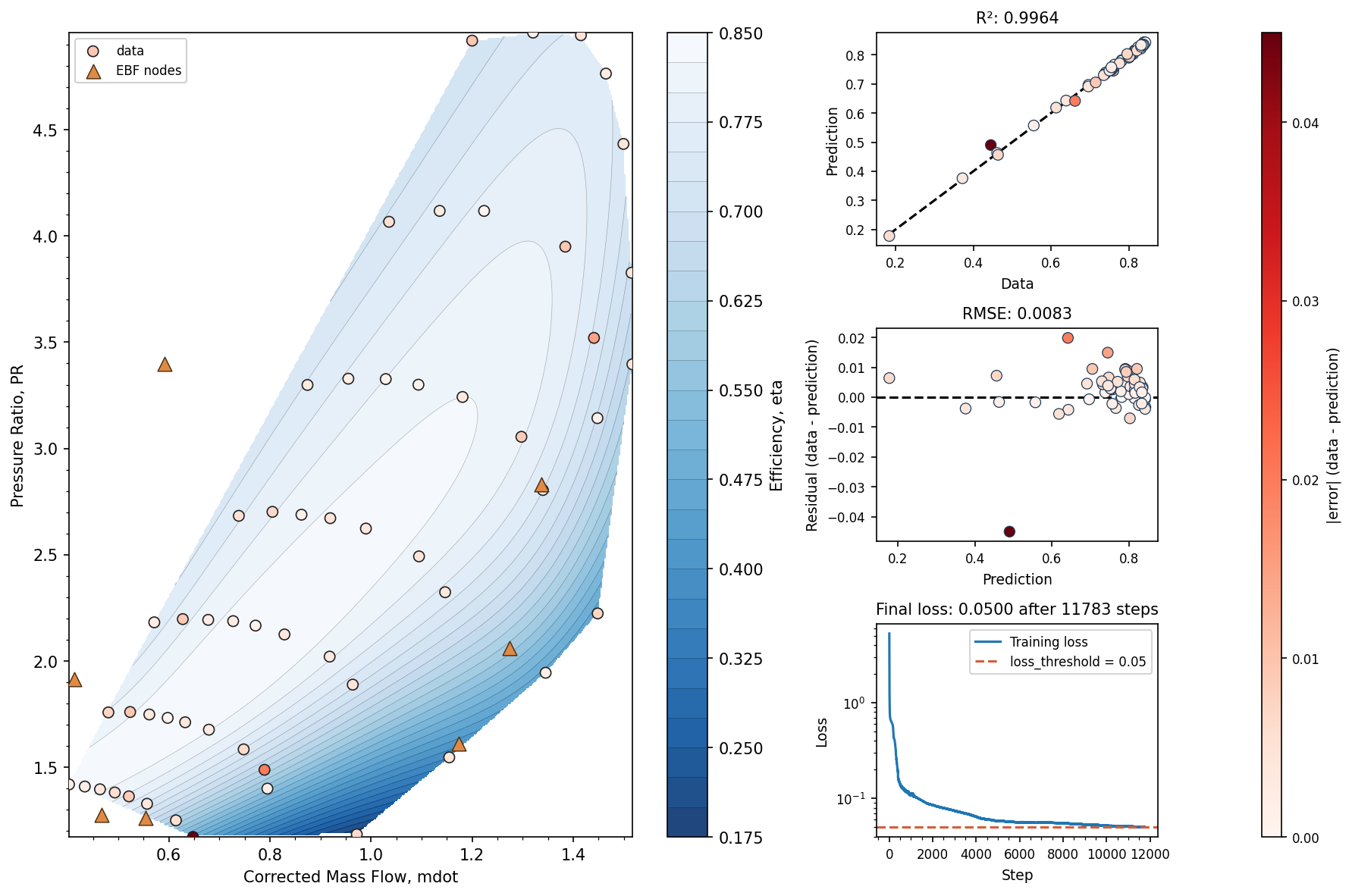

Compressor map fit summary

56 test points, 9 nodes. The three right-hand panels answer the questions worth asking of any fit:

  • Correlation (R² = 0.9964) — is it accurate overall?
  • Residuals (RMSE = 0.0083, ~1.3% of the 0.184–0.843 efficiency range) — is it wrong anywhere in particular? Note the single point near prediction 0.5 sitting well below the others; the correlation plot hides it against the 1:1 line.
  • Convergence — training stopped at 11,783 of the 80,000 requested steps when the loss reached loss_threshold=0.05.

Every data point is shaded by its absolute error, on one scale shared by all three data panels (colorbar on the far right). That is what ties the panels together: the outlier the residual plot isolates is also the darkest marker on the map, in the low-flow, low-pressure-ratio corner. Pass error_color=False for flat white markers instead.

Two of the nine nodes sit outside the plotted region. contour_plot_2d deliberately clamps the axes to the data bounds, so a node that drifts far outside during training doesn't stretch the view and shrink the map.

Exporting a Lookup Table

After fitting, you can evaluate the model on a regular grid and export the results as a CSV lookup table for use in other programs (Excel, MATLAB, cycle-deck codes, etc.):

bounds = list(zip(X.min(axis=0), X.max(axis=0)))
grid = ebf.eval_grid(model, bounds, n_points=100)

ebf.export_grid(
    "checkpoints/compressor_map_lookup.csv",
    grid,
    dim_names=['mdot', 'PR'],
)

This produces a 10 000-row CSV with columns Corrected Mass Flow, Total Pressure Ratio, and prediction. See the Visualization page for NPZ export and other options.
